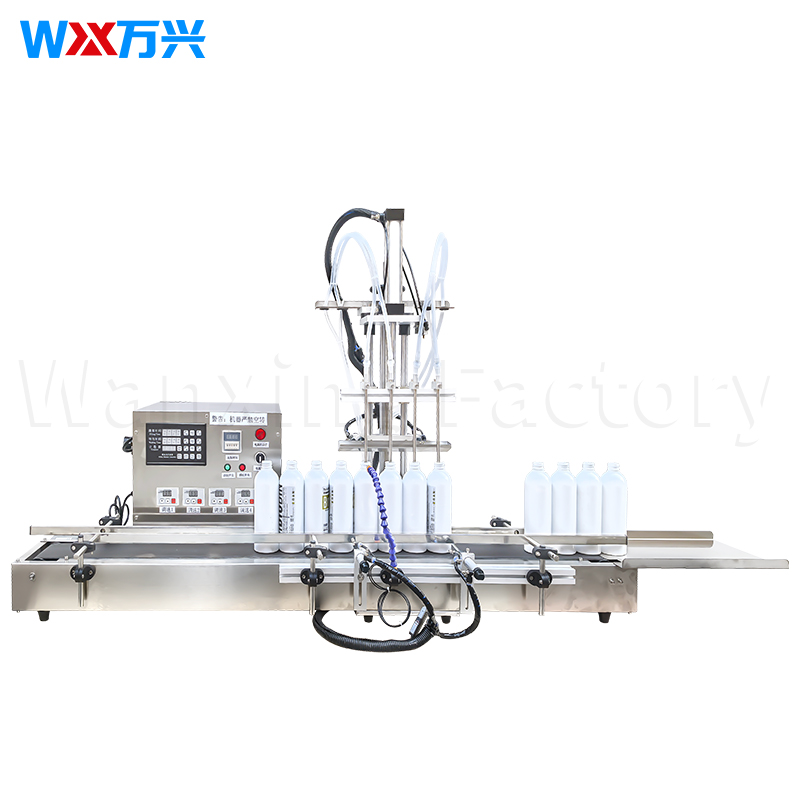

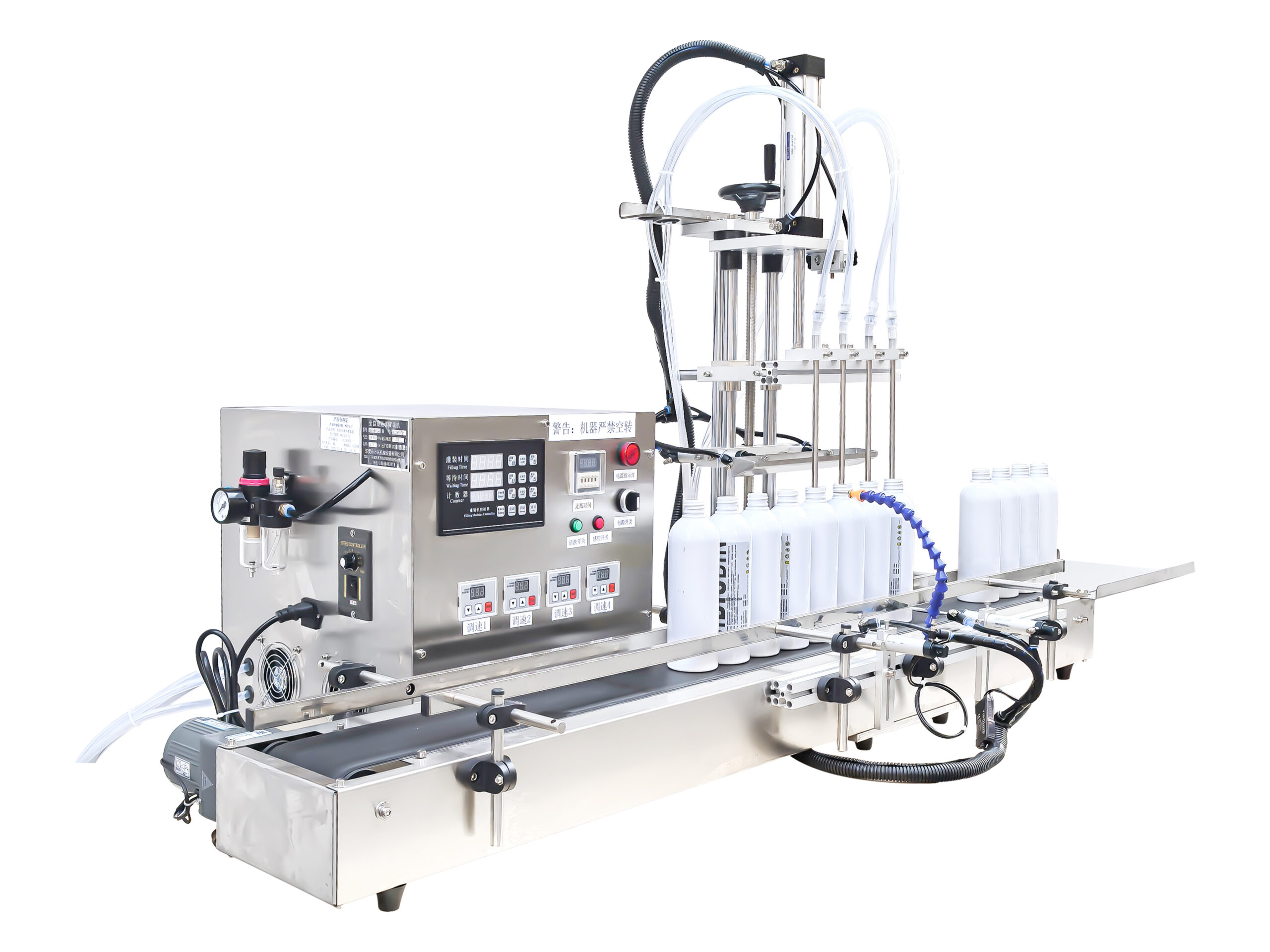

Equipment name: Desktop lifting filling machine

Filling accuracy: ± 1% (based on water concentration)

Flow rate: 2.5 liters/head/minute (customizable)

Number of filling heads: 4 heads (2/6/8 and other multiple heads can be customized)

Pump head type: gear pump

Production speed: configured according to material matching

Applicable materials: sample customization is available

Body material: stainless steel+aluminum alloy combination

Equipment voltage: 110/220V 50-60HZ

Applicable gas source: 0.4-0.6Mpa

The 6 heads automatic liquid filling machine is our mainstream medium-speed filling equipment, designed for medium-scale liquid batch production. Different from single-head and double-head small filling equipment, the 6 heads automatic liquid filling machine greatly improves production efficiency while keeping filling precision stable, which can meet the daily production needs of most factories.
This 6 heads automatic liquid filling machine works on piston quantitative filling principle. Each nozzle can independently adjust the filling range, and the overall operation is controlled by simple mechanical coordination, without complex professional operation technology for workers. The whole machine body is made of SUS304 stainless steel, which meets food and pharmaceutical sanitary standards, resists liquid corrosion and is easy to disassemble and clean.
Core Advantages
Six independent filling nozzles, fast feeding and discharging, high continuous working efficiency;
The 6 heads automatic liquid filling machine is equipped with anti-drip valves at the outlet of each nozzle to effectively avoid liquid dripping and bottle contamination;
The filling volume can be freely adjusted within the rated range, and the filling error is controlled within ±1%;
Compatible with round bottles, square bottles, flat bottles and most conventional plastic & glass bottles;
Low failure rate, convenient daily maintenance, long service life and low production cost.
Applicable Scenarios
This 6 heads automatic liquid filling machine is suitable for filling edible oil, beverages, seasonings, lotion, shampoo, oral liquid, agricultural chemicals and other non-viscous and slightly viscous liquids, covering food, daily chemical, pharmaceutical, agricultural industry.
Our technical team supports personalized customization. We can adjust nozzle quantity, filling range, bottle clamping structure and connect assembly lines according to your actual workshop conditions and production speed requirements.

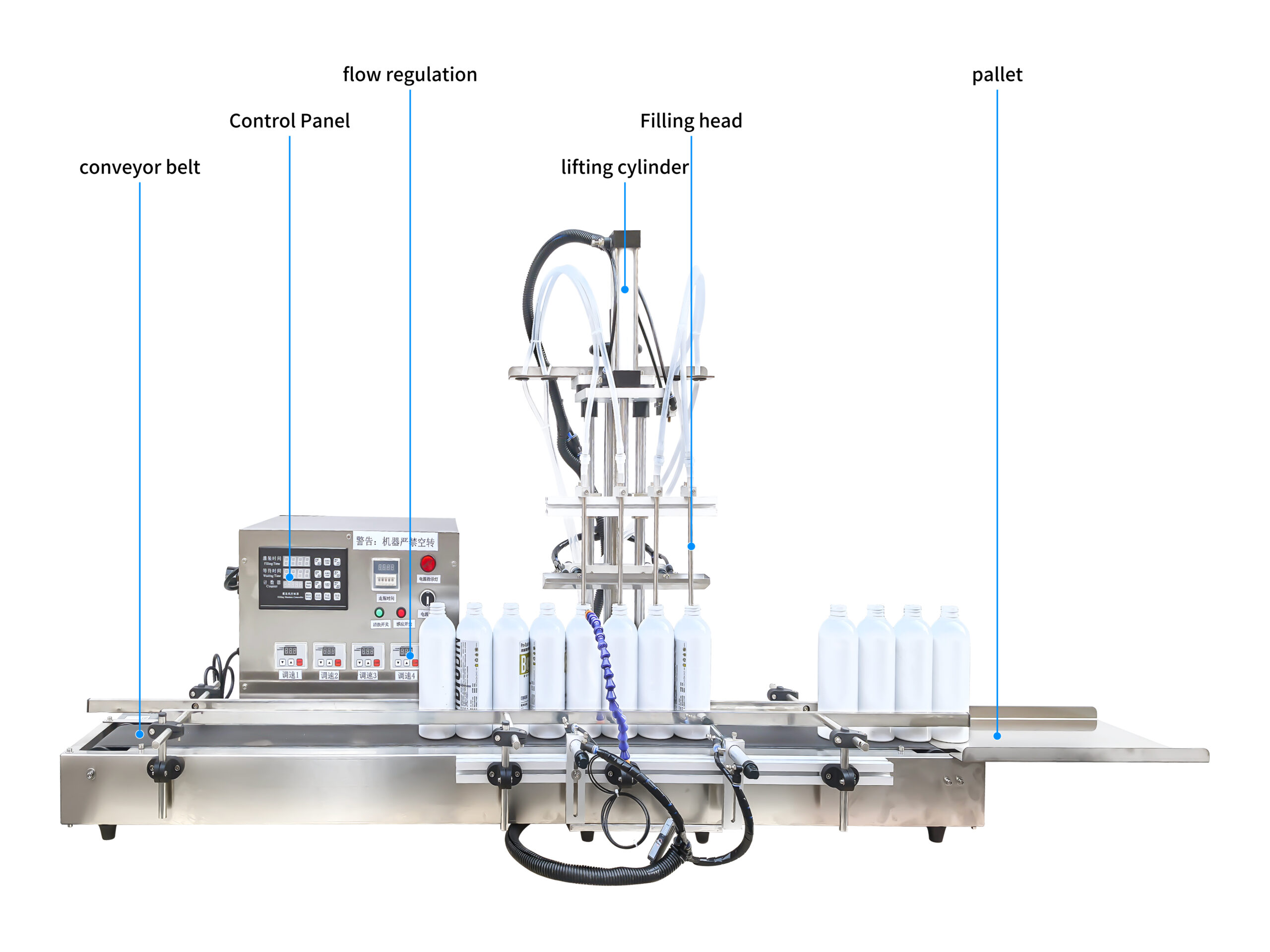

CNC control panel（数控面板）

Digital precise adjustment, intuitive and simple parameter settings, real-time display of operating data, one click mode switching, stable and reliable control

Lift filling head（灌装）

Independently controlled filling, convenient flow regulation, stable and satisfactory, suitable for quantitative packaging of various American types, efficient deep filling, clean and hygienic
